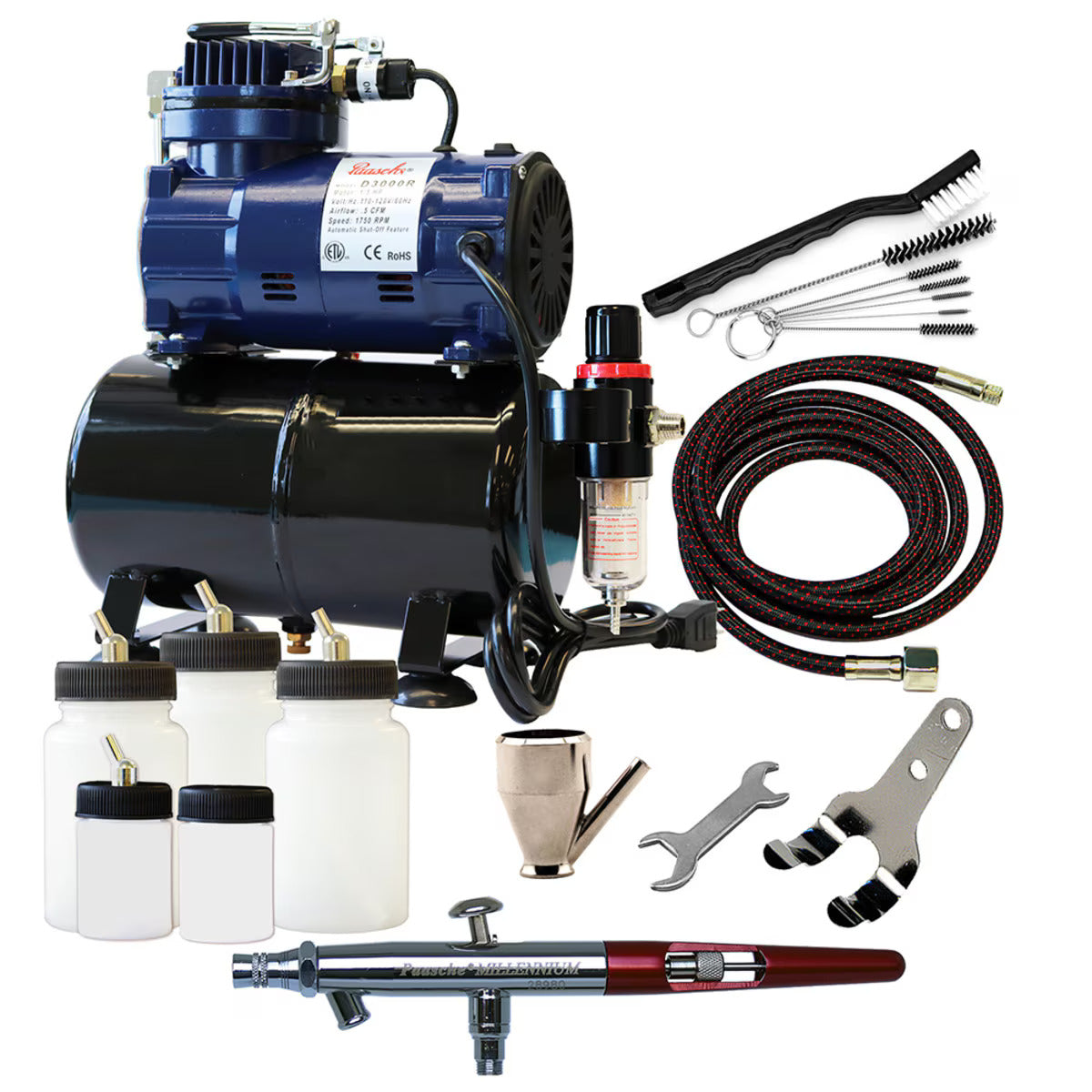

MIL-300R Airbrush Package (MIL-1AS, D3000R & AC-7)

D3000R MANUAL (CLICK HERE TO DOWNLOAD)

MIL MANUAL (CLICK HERE TO DOWNLOAD)

MIL Double Action - Internal Mix - Siphon Feed Airbrush:

The MIL series is slender body airbrush  with a cut-away aluminum handle that has the  ability to spray most material whether thick or thin. The PTFE packing can handle water based or solvent based mediums. The MIL airbrush offers versatility with three interchangeable head sizes. This model can achieve spray patterns from fine detail to broader coverage handling light, medium and heavy fluids. The rounded head allows for easy removal of any dried paint with just a pinch of your fingers.


MIL-1AS Includes:

• MIL airbrush with cut-out anodized aluminum handle
• medium size 3 head
• 1 oz bottle assembly
• 1/4 oz metal cup
• 1 oz storage bottle
• 6' braided hose
• hanger
• wrench.

Features:

• Airbrush Made In The USA
• Highly polished & hardened stainless steel needles for long life and reduced clogging
• Solvent proof PTFE needle packing allows spraying of water & solvent based paints
• Removable needle protector for fine detail spraying
• Cut-Away Anodized aluminum handle
• Chrome plated body

Specs:

• Part Number: MIL-1AS
• Type: Double action, Internal mix, Siphon feed
• Head Size: Size 3 (.74mm)
• Fluid Packing PTFE - Can spray solvent or water based fluids

• Air Volume: 20 PSI @ .5 CFM

• Air Pressure: 20-75 PSI

• Air Inlet: ¼"-20 Thread (Paasche thread) - adapters available

• Bottle size: 1/4oz to 8oz bottles available

• Spray Pattern: 1/32" to 1-1/2"

• Weight: 1 Lbs

• Finish: Chrome plated body

The DA300R airbrush compressor is perfect for any hobby or artist airbrush. The maximum operating pressure will be about 35 PSI depending on airbrush being used. The DA300R is light weight, easily mobile and best of all quiet. The auto shutoff feature turn the compressor off when the airbrush is not being triggered to increase compressor life. Included with the compressor is a 1/8BPS adaptor for competitor hoses.

The compressor features include:

• 1/5 HP piston compressor

• Regulator & moisture trap

• Delivers 1-35 PSI depending on head size being used

• Standard Paassche 1/4NPT hose fitting

• 1/8 BPS hose adaptor for competitor hoses

• Auto shutoff feature

• Carrying handle

• Quiet: noise level is 47 Db's
