TS-100D Airbrush Package (TS-3AS, D500SR, AC-7)

D500SR MANUAL (CLICK HERE TO DOWNLOAD)

TS MANUAL (CLICK HERE TO DOWNLOAD)

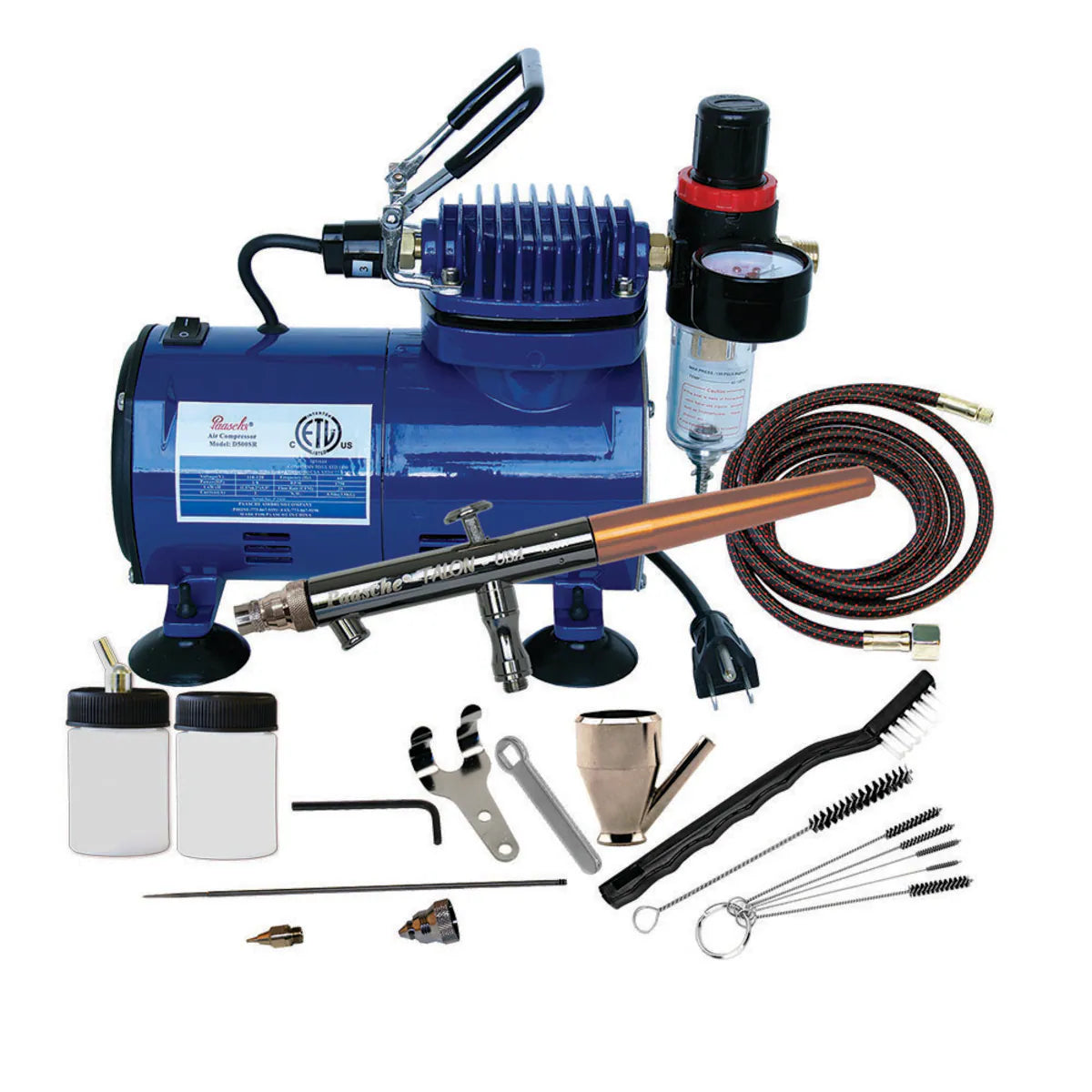

This kit combines the Paasche TS-3AS, D500SR compressor, and AC-7 cleaning kit.

The airbrush features a chrome plated body and aluminum anodized cutaway handle.  The TS includes all three available heads and can achieve detail down to 1/64 inch and using our included fan head wider patterns up to 3 inches.  A PTFE packing enables the TS to handle any water or solvent based paint.  Clean up is as simple as spraying your paint cleaner though the airbrush and wiping of the needle.  The TS can be used for many applications including hobby, craft, automotive, t-shirts, taxidermy, ceramics, cake decorating, tanning, tattoos, etc.  The TS airbrush is made in the US.  Includes 1/8"BSP Adapter that work with most competitors hoses.

TS-A3 Includes:

• TS#3 airbrush
• Size 1 (0.25mm) sprayhead
• Size 2 (0.38mm) sprayhead
• Size 3 (0.66mm) sprayhead
• Fan Aircap
• 1oz bottle assembly
• 1oz storage bottle
• hanger
• (2) wrenches
• 6 ft braided hose
• 1/8" BSP adapter
• manual

Specs:

• Part Number: TS-3AS

• Type: Double action, Internal mix, Siphon feed

• Head Size: Size 1(.25mm) Size 2(.38mm) & 3 (.66mm) Heads & Fan Aircap

• Fluid Packing: PTFE - Can spray solvent or water based fluids

• Air Volume: 20 PSI @ .5 CFM

• Air Pressure: 20-75 PSI

• Air Inlet: (Paasche thread) - 1/8"BSP Adapter

• Bottle size: 1/4oz to 8oz bottles available

• Spray Pattern: 1/64" to 1-1/2" plus up to 3" with Fan Aircap

• Weight: 1 Lbs

• Finish: Chrome plated body


The D500SR airbrush compressor is perfect for any hobby or artist airbrush. The maximum operating pressure will be about 35 PSI depending on airbrush being used. The D500SR is light weight, easily mobile and best of all quiet. The auto shutoff feature turn the compressor off when the airbrush is not being triggered to increase compressor life. Included with the compressor is a 1/8BPS adaptor for competitor hoses.

The compressor features include:

• 1/5 HP piston compressor

• Regulator & moisture trap

• Delivers 1-35 PSI depending on airbrush being used

• Standard Paasche 1/4NPT hose fitting

• 1/8 BPS hose adaptor for competitor hoses

• Auto shutoff feature

• Carrying handle

• Quiet: noise level is 47 Db's

• Includes 1 year warranty from date of purchase
• 7 piece airbrush cleaning kit. Can be used to clean any airbrush.
